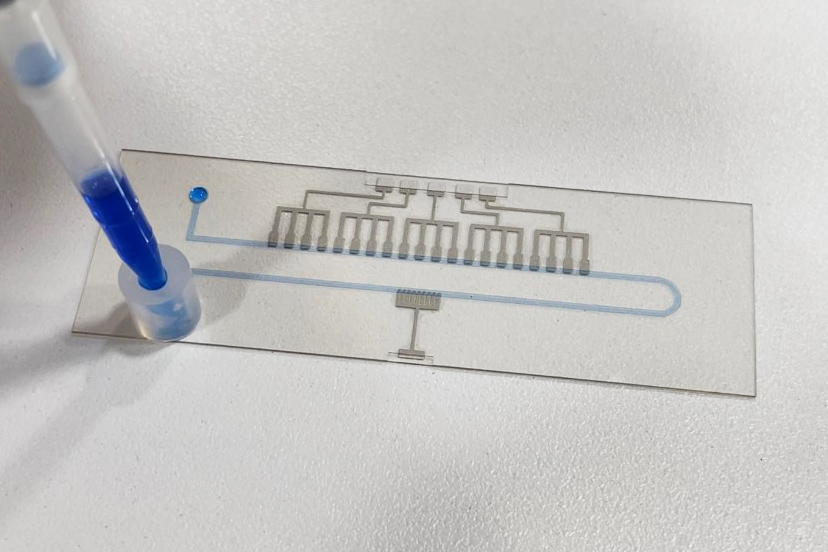

【MOVIE】Microfluidic device with electrodes

Customer's Challenge

This customer wanted to integrate electrodes into microfluidic channels to perform various measurements, such as flow velocity and more.

CSTEC's Proposal

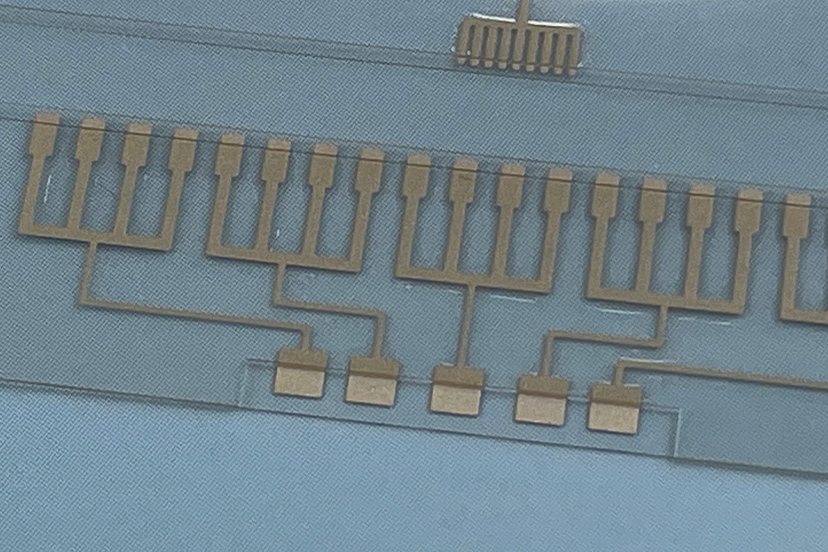

We created silver-silver chloride and carbon electrodes by screen printing. The printed electrodes were laser-processed with position alignment by camera, then laminated with adhesive tape and hydrophilic films to create a microfluidic device with integrated electrodes. This device can be applied to electrochemical sensors, electrophoresis chips, and biosensors, and is also ideal for low-cost disposable chips. Production is available starting from a single unit.

Materials used

Hydrophilic PET, Double-sided adhesive tape
